FleetZOOM FZ300 Equipment Monitoring Device

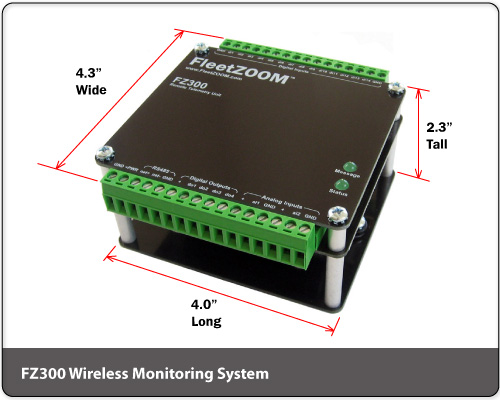

FZ300 Dimensions

The FZ300 is a compact transceiver for monitoring industrial equipment that sends live data to a monitoring web site, providing real-time live status over the web and sends alarms when status changes occur.

The FZ300 features 14 digital inputs, 4 digital outputs and 2 analog inputs. In addition to alarming on status changes, the system keeps track of on-time and cycles for the digital inputs; useful for monitoring pump, fan, or compressor run times and duty cycles. Analog inputs can alarm on high or low conditions and are useful for monitoring temperatures, pressures, tank levels or flow rates.

The FZ300 monitors input power voltage and has an internal battery backup that enables alarming upon loss of main power.

No software to buy, install or maintain; all features are accessible on the monitoring website from any smartphone, tablet, or computer with Internet access.

Questions about the FZ300 or how FleetZOOM can help with your monitoring project?

  Contact Us!

FZ300 Specifications

Size 4.0" x 4.3" x 2.3"
Digital Inputs 14
Digital Outputs 4
Analog Inputs 2
4-20 mA, 0-5 Volt, or 0-20 mA
Power 9 - 32 Volts DC
Battery Backup Internal Onboard
Current Consumption Idle 75 mA
Tx, Avg: 280 mA
Tx, Peak: 2.2 A
Antenna Connector SMA Female
I/O Connector 2 x 16 Position 5 mm Removable Terminal Block
Radio 1xRTT CDMA or 3G GSM
Transmit Power 850/900 MHz: Class 4, 2 Watts
1800/1900 MHz: Class 2, 1 Watt
Temperature Operating: -30C to +70C
Storage: -40C to +85C
Max Humidity 95% Non-Condensing

Specifications and product summary also available as a PDF data sheet:

Need a quote? The FZ300 is available with or without professional installation. Dealer inquiries welcome!
