FleetZOOM FZ200 Equipment Monitoring Device

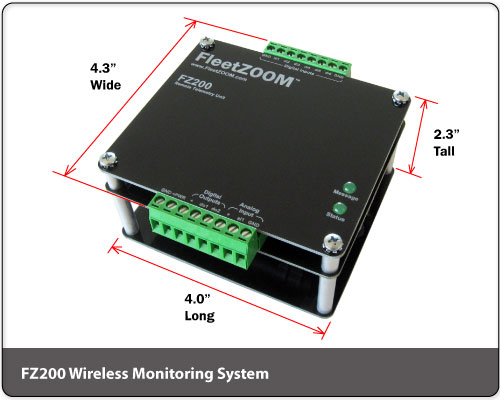

FZ200 Dimensions

The FZ200 is a compact transceiver for monitoring industrial equipment that sends live data to a monitoring web site, providing real-time live status over the web and sends alarms when status changes occur.

The FZ200 features 6 digital inputs, 2 digital outputs and 1 analog input. In addition to alarming on status changes, the system keeps track of on-time and cycles for the digital inputs; useful for monitoring pump, fan, or compressor run times and duty cycles. The analog input can alarm on high or low conditions and is useful for monitoring temperatures, pressures, tank levels or flow rates.

The FZ200 monitors input power voltage and has an internal battery backup that enables alarming upon loss of main power.

No software to buy, install or maintain; all features are accessible on the monitoring website from any smartphone, tablet, or computer with Internet access.

Questions about the FZ200 or how FleetZOOM can help with your monitoring project?

  Contact Us!

FZ200 Specifications

Size 4.0" x 4.3" x 2.3"
Digital Inputs 6
Digital Outputs 2
Analog Inputs 1
4-20 mA, 0-5 Volt, or 0-20 mA
Power 9 - 32 Volts DC
Battery Backup Internal Onboard
Current Consumption Idle 70 mA
Tx, Avg: 275 mA
Tx, Peak: 2.2 A
Antenna Connector SMA Female
I/O Connector 2 x 8 Position 5 mm Removable Terminal Block
Radio 1xRTT CDMA or 3G GSM
Transmit Power 850/900 MHz: Class 4, 2 Watts
1800/1900 MHz: Class 2, 1 Watt
Temperature Operating: -30C to +70C
Storage: -40C to +85C
Max Humidity 95% Non-Condensing

Specifications and product summary also available as a PDF data sheet:

Need a quote? The FZ200 is available with or without professional installation. Dealer inquiries welcome!
